FSX

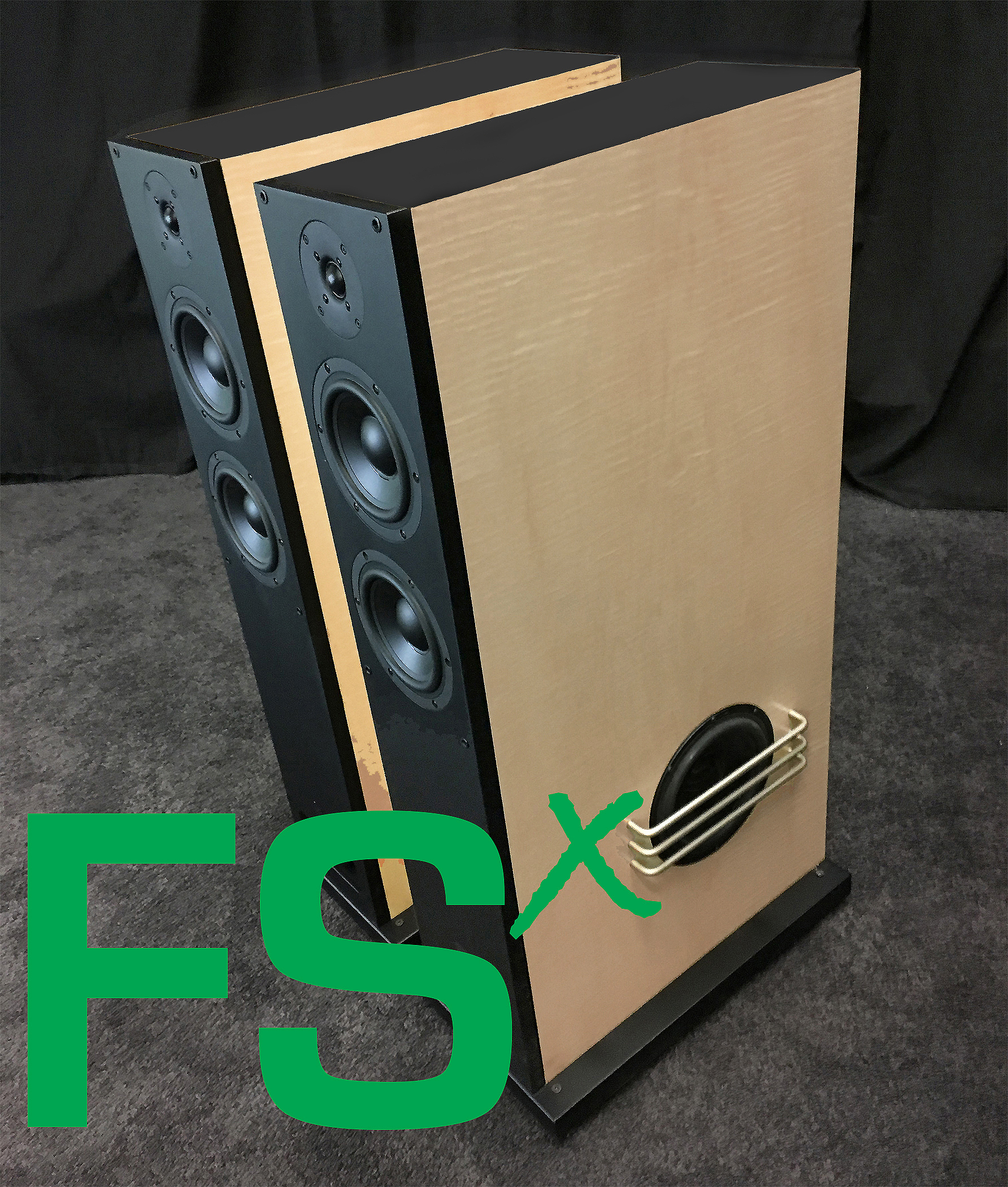

The top of the FS series. Available in custom finishes, including White, Piano Black, Figured Maple (shown) or Makassar Ebony.

FSX systems receive individually graded and tightly matched drivers to insure unsurpassed performance.

Extensive listening tests and burn-in at our shop, insure a speaker that will sound great right out of the crate!

Based on our highly regarded FS1 but with a few special touches!





FSX is a "3-driver + passive radiator" design.

Mid-High components live in a seperate sealed enclousre from the low frequency sections.

This robust speaker features a 1.5" baffle board and extensive internal bracing.

FSX / SPECIFICATIONS

LF: SE HighXt™6.5" / 170mm /copolymer + 8" passive radiator
MF: SE HighXs™6.5" / 170mm /copolymer
HF: 1" / 25mm soft dome
Frequency Response: 34Hz-22kHz
Sensitivity: 91dB @ 1W / 1 meter
Recommended Amplifier Power: 75 to 450 Watts
Impedance: 4 Ohms
Crossover Frequencies: 80Hz / 3kHz
Construction: HDF and MDF with harwood veneers.
Cabinet Dimensions: (HxWxD): 45.5”x8.625"x22.125" (sans grill)
Weight: 94 lbs. / 42.6kg (shipping weight: 104 lbs. / 47.2kg)

MSRP: $10,5000 -$11,500

Available options include bi-wire connectors and "tweeter tilt" switch.



Warranty

Studio Electric loudspeakers are warrantied for two years from date of manufacture. In most cases, the warranty is transferable.



How to Buy

We sell direct. But we also have a dealer program. Please inquire.

Lead Times / Terms

Though we do stock some finished units, normally we build your speakers when ordered. M4 and FS1 speakers can usualy ship in 3-4 weeks. T2, T3 speakers and EA4 amplifiers will take 10-12 weeks. A 50% deposit is required on all custom builds.
